$3,000.99
Hazet 4812-23AF HD swivelling Probe 180° ∙ ⌀ 3.9 mm ∙ Front Camera—
$3,000.99
The Story
Physical Characteristics
Color
Black
Length
2589 mm
Width
35.4 mm
Height
51.1 mm
Weight
0.61 kg
1.34 lb
Details
Measurement Standard
Metric
Batteries
internal rechargeable battery
Cable Type
Probe cable
Temperature Range
-10° C to 60° C
Features
Diagnosis and documentation of cavities for damage assessment
Improved accuracy of detail thanks to HD camera
Smaller probe diameter 3.9 mm
Compatible with basic unit 4812-23G and 4812-11G
Including control unit to operate articulation, video recording, brightness control
Bending radius approx. 35 mm (-30% compared to conventional designs)
High mobility due to bilateral articulation
Full swivel up to 180° on both sides enables e.g. a real reverse view onto valves in the cylinder head
Front camera
Twofold dimmable LED light source
Light intensity: front LED 200 – 300 Lux (measured at 5 cm distance)
Digital interface to basic unit: USB-C
Viewing angle (FOV): 90°
Depth of focus (DOV): 10 – 100 mm
Resolution: HD 1280(H) x 720(V) pixels
Compression format: H.264
Operating temperature: -10° C to 60° C
Probe protection rating: IP67
Weight: 307 g
Improved accuracy of detail thanks to HD camera
Diagnosis of cavities for damage assessment
Image format: Jpeg
Video format: MOV
Protection rating probe: IP67 (when connected)
Probe cable: 1 m

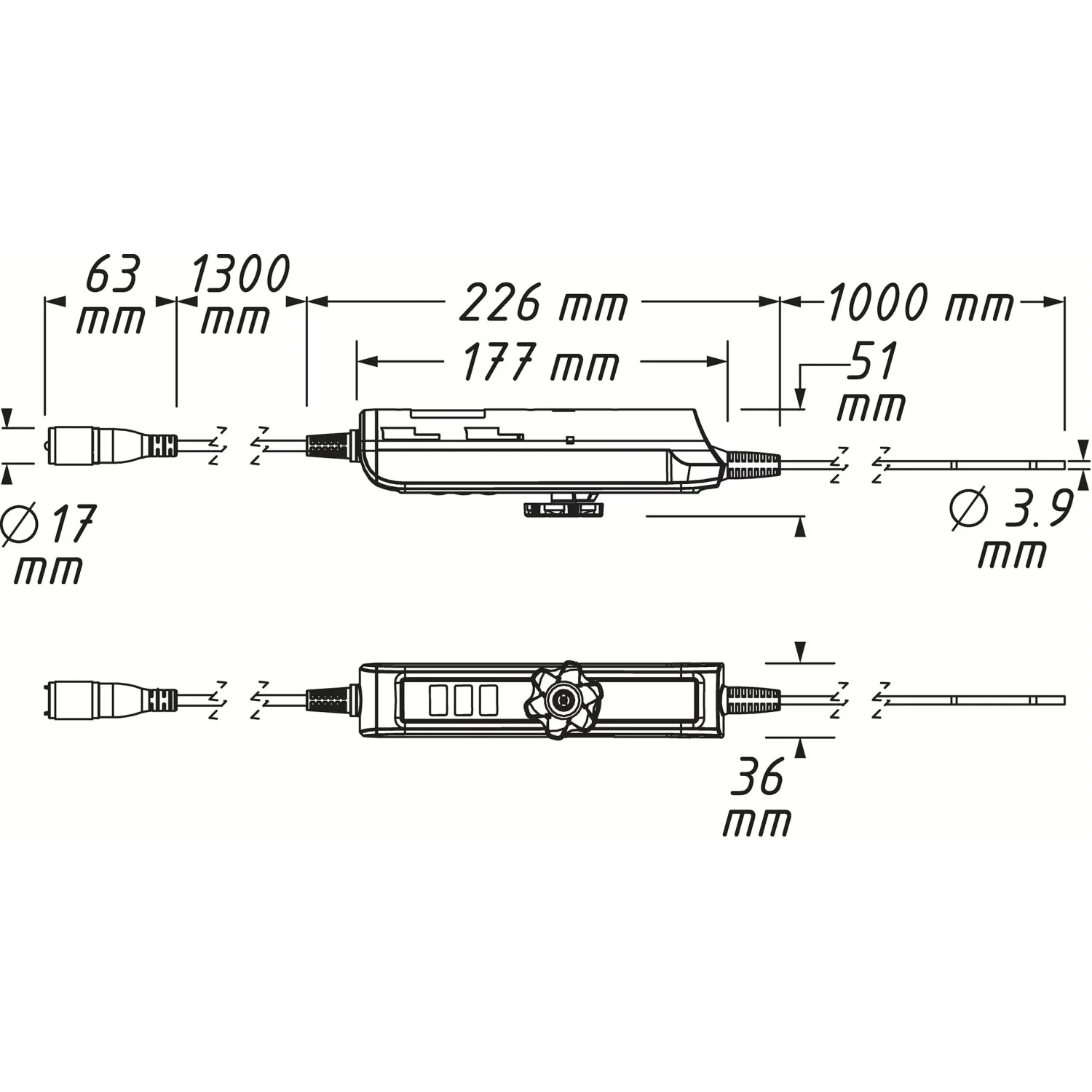

Dimensions: 35.4 x 51.1 mm 2589 mm (W x H x L)
Improved accuracy of detail thanks to HD camera
Smaller probe diameter 3.9 mm
Compatible with basic unit 4812-23G and 4812-11G
Including control unit to operate articulation, video recording, brightness control
Bending radius approx. 35 mm (-30% compared to conventional designs)
High mobility due to bilateral articulation
Full swivel up to 180° on both sides enables e.g. a real reverse view onto valves in the cylinder head
Front camera
Twofold dimmable LED light source
Light intensity: front LED 200 – 300 Lux (measured at 5 cm distance)
Digital interface to basic unit: USB-C
Viewing angle (FOV): 90°
Depth of focus (DOV): 10 – 100 mm
Resolution: HD 1280(H) x 720(V) pixels
Compression format: H.264
Operating temperature: -10° C to 60° C
Probe protection rating: IP67
Weight: 307 g
Improved accuracy of detail thanks to HD camera
Diagnosis of cavities for damage assessment
Image format: Jpeg
Video format: MOV
Protection rating probe: IP67 (when connected)
Probe cable: 1 m
Dimensions: 35.4 x 51.1 mm 2589 mm (W x H x L)
General Information
Brand
Hazet
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Part Number
4812-23AF
Product Type
HD swivelling probe
UPC
4000896249602
