$77.10
Original: $220.29

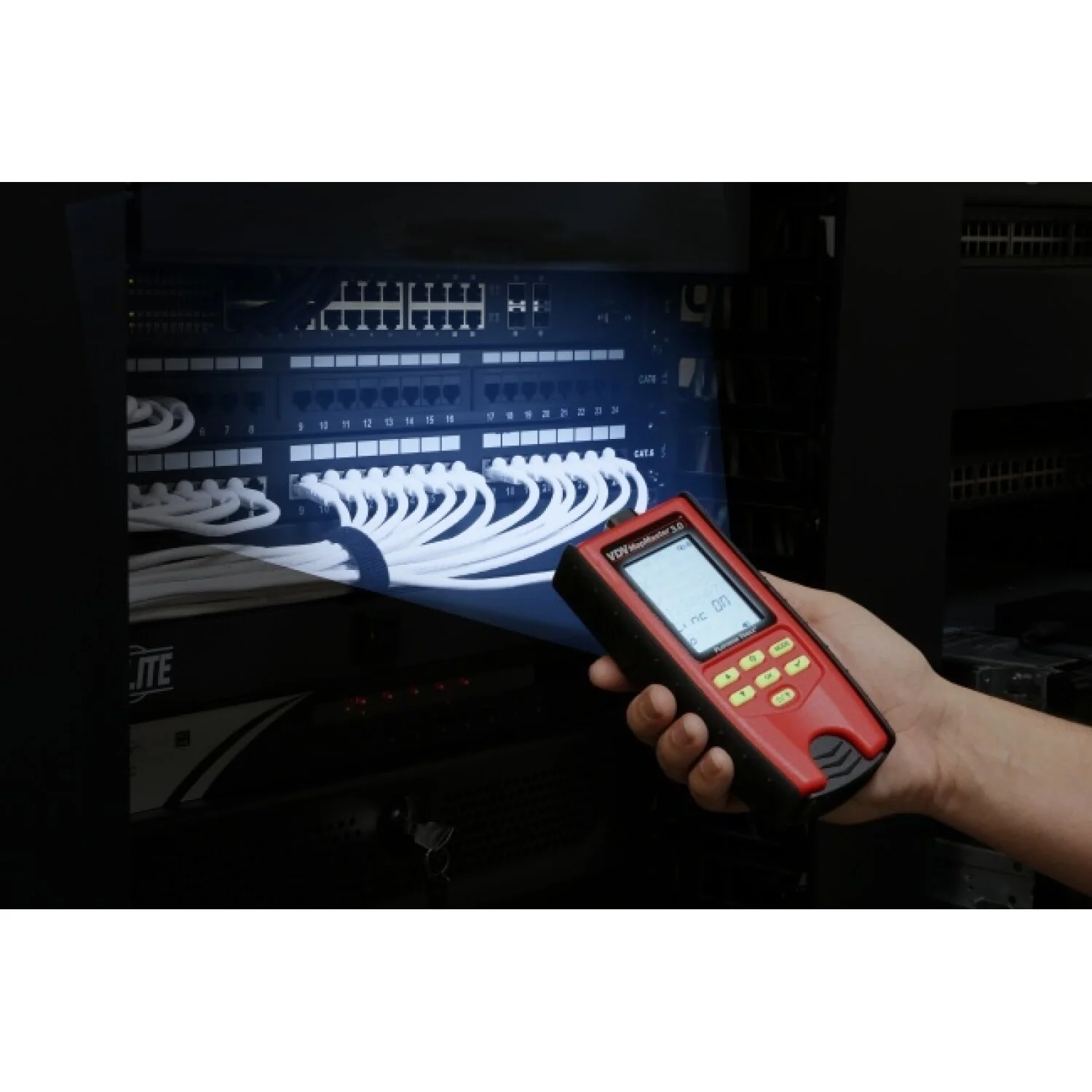

-65%Platinum Tools T130K1 VDV MapMaster 3.0 Twisted Pair and Coax Cable Tester Kit, Includes Main Unit, Remotes, Accessories and Nylon Case—
$220.29
$77.10The Story
Physical Characteristics
Material
Nylon
Weight
0.77 kg
1.70 lb
Details
Batteries
9V alkaline
Cable Type
Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
Display Type
Large 2.75” Backlit Monochrome LCD
Temperature Range
0˚C/32˚F to 50˚C/122˚F
Features
Ideal for the installation, troubleshooting and maintenance of twisted pair and coax cables
Detects shorts, opens, miswires, reversals and split-pairs
Tests to T568A/B wiremap configuration
Single-ended testing for shorts and split pairs
Measures length in feet and meters
Identifies cable location on active ports using flashing port link light
Easy-to-read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Built-in tone generator with four selectable cadences
Finds and fixes the position of exposed or hidden cables
Continuous loop test mode for troubleshooting
Voltage detection warning icon
Master remote stored in main unit
Measures cable length, distance to opens and breaks specific wires, pairs or all wires simultaneously
Auto-off and timed backlight in any mode for low power consumption and long battery life
Tester, remotes, accessories and nylon roll-up case
RoHS compliant
Detects shorts, opens, miswires, reversals and split-pairs
Tests to T568A/B wiremap configuration
Single-ended testing for shorts and split pairs
Measures length in feet and meters
Identifies cable location on active ports using flashing port link light
Easy-to-read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Built-in tone generator with four selectable cadences
Finds and fixes the position of exposed or hidden cables
Continuous loop test mode for troubleshooting
Voltage detection warning icon
Master remote stored in main unit
Measures cable length, distance to opens and breaks specific wires, pairs or all wires simultaneously
Auto-off and timed backlight in any mode for low power consumption and long battery life
Tester, remotes, accessories and nylon roll-up case
RoHS compliant
Voltage
50V DC or AC
Battery Life
425 hour
General Information
Brand
Platinum Tools
What's Included
Main Unit, Remotes, Accessories and Nylon Case
Country of Origin
Taiwan
California Residents
Proposition 65 Warning
Part Number
T130K1
Product Type
Tester Kit
UPC
849160008576
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Physical Characteristics
Material
Nylon
Weight
0.77 kg
1.70 lb
Details
Batteries
9V alkaline
Cable Type
Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax
Display Type
Large 2.75” Backlit Monochrome LCD
Temperature Range
0˚C/32˚F to 50˚C/122˚F
Features
Ideal for the installation, troubleshooting and maintenance of twisted pair and coax cables
Detects shorts, opens, miswires, reversals and split-pairs
Tests to T568A/B wiremap configuration
Single-ended testing for shorts and split pairs
Measures length in feet and meters
Identifies cable location on active ports using flashing port link light
Easy-to-read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Built-in tone generator with four selectable cadences
Finds and fixes the position of exposed or hidden cables
Continuous loop test mode for troubleshooting
Voltage detection warning icon
Master remote stored in main unit
Measures cable length, distance to opens and breaks specific wires, pairs or all wires simultaneously
Auto-off and timed backlight in any mode for low power consumption and long battery life
Tester, remotes, accessories and nylon roll-up case
RoHS compliant
Detects shorts, opens, miswires, reversals and split-pairs
Tests to T568A/B wiremap configuration
Single-ended testing for shorts and split pairs
Measures length in feet and meters
Identifies cable location on active ports using flashing port link light
Easy-to-read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
Identify up to 20 network or coax cable runs at a time
Built-in tone generator with four selectable cadences
Finds and fixes the position of exposed or hidden cables
Continuous loop test mode for troubleshooting
Voltage detection warning icon
Master remote stored in main unit
Measures cable length, distance to opens and breaks specific wires, pairs or all wires simultaneously
Auto-off and timed backlight in any mode for low power consumption and long battery life
Tester, remotes, accessories and nylon roll-up case
RoHS compliant
Voltage
50V DC or AC
Battery Life
425 hour
General Information
Brand
Platinum Tools
What's Included
Main Unit, Remotes, Accessories and Nylon Case
Country of Origin
Taiwan
California Residents
Proposition 65 Warning
Part Number
T130K1
Product Type
Tester Kit
UPC
849160008576
