$195.99
SilverStone TR1000R-GM-WWW Triton 1000Rz Cybernetics Gold Fully Modular ATX Power Supply—
$195.99
The Story
General Information
Manufacturer
SilverStone
Part Number
TR1000R-GM-WWW
Product Type
Power Supply
California Residents
Proposition 65 Warning
Specifications
Color
White
Material
Plastic
Length
5.51" (140 mm)
Width
5.91" (150 mm)
Height
3.39" (86 mm)
Weight
3.18 kg
7.00 lb
Miscellaneous
Features
Max. DC Output: 1000W
Power Density: 553.7 W/L
Combined +3.3V & +5V: 110W
Combined +12V: 1000W
Input Voltage: 90 ~ 264 Vrms
Input Frequency Range: 47Hz ~ 63Hz
PFC: Active PFC（PF>0.9 at Full Load)
Efficiency: ≥87% & <89% Overall Efficiency
MTBF: 100,000 hours
Operating Temperature: 0°C ~ 40°C
Noise Level: 18 dBA Minimum
Cooling System: Single 120mm FDB Fan
Certification: Cybernetics Gold
Form Factor: ATX (PS2)
Connectors:
1 x 24 / 20-Pin Motherboard Connector
2 x 8 / 4-Pin EPS / ATX 12V Connector
1 x 12+4-Pin 12V-2x6 Connector
4 x 8 / 6-Pin PCIe Connector
8 x SATA Connector
4 x 4-Pin Peripheral Connector
Protection:
Over Power Protection
Over Current Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Load Range:

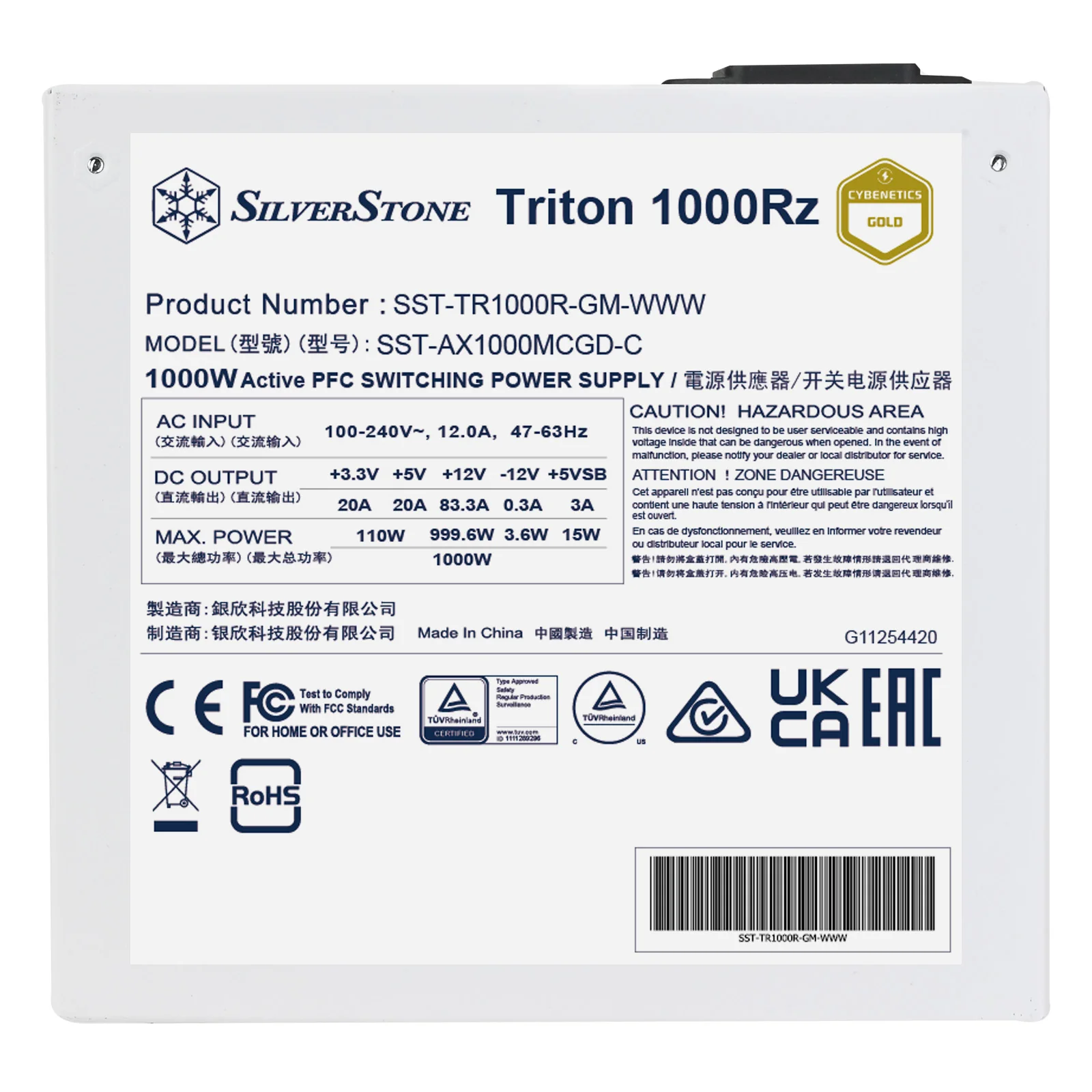

Output: +3.3V +5V +12V +5VSB -12V
Max.(Amps): 20A 20A 83.3A 3.0A 0.3A
Peak (Amps): / / / / /
Min.(Amps): 0A 0A 0A 0A 0A
Range (%): ±3% ±3% ±3 ±3% ±10%
Line Reg.(%): ±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p): 30mV 30mV 40mV 30mV 50mV
Power Density: 553.7 W/L
Combined +3.3V & +5V: 110W
Combined +12V: 1000W
Input Voltage: 90 ~ 264 Vrms
Input Frequency Range: 47Hz ~ 63Hz
PFC: Active PFC（PF>0.9 at Full Load)
Efficiency: ≥87% & <89% Overall Efficiency
MTBF: 100,000 hours
Operating Temperature: 0°C ~ 40°C
Noise Level: 18 dBA Minimum
Cooling System: Single 120mm FDB Fan
Certification: Cybernetics Gold
Form Factor: ATX (PS2)
Connectors:
1 x 24 / 20-Pin Motherboard Connector
2 x 8 / 4-Pin EPS / ATX 12V Connector
1 x 12+4-Pin 12V-2x6 Connector
4 x 8 / 6-Pin PCIe Connector
8 x SATA Connector
4 x 4-Pin Peripheral Connector
Protection:
Over Power Protection
Over Current Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Load Range:
Output: +3.3V +5V +12V +5VSB -12V
Max.(Amps): 20A 20A 83.3A 3.0A 0.3A
Peak (Amps): / / / / /
Min.(Amps): 0A 0A 0A 0A 0A
Range (%): ±3% ±3% ±3 ±3% ±10%
Line Reg.(%): ±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p): 30mV 30mV 40mV 30mV 50mV
