$29.99

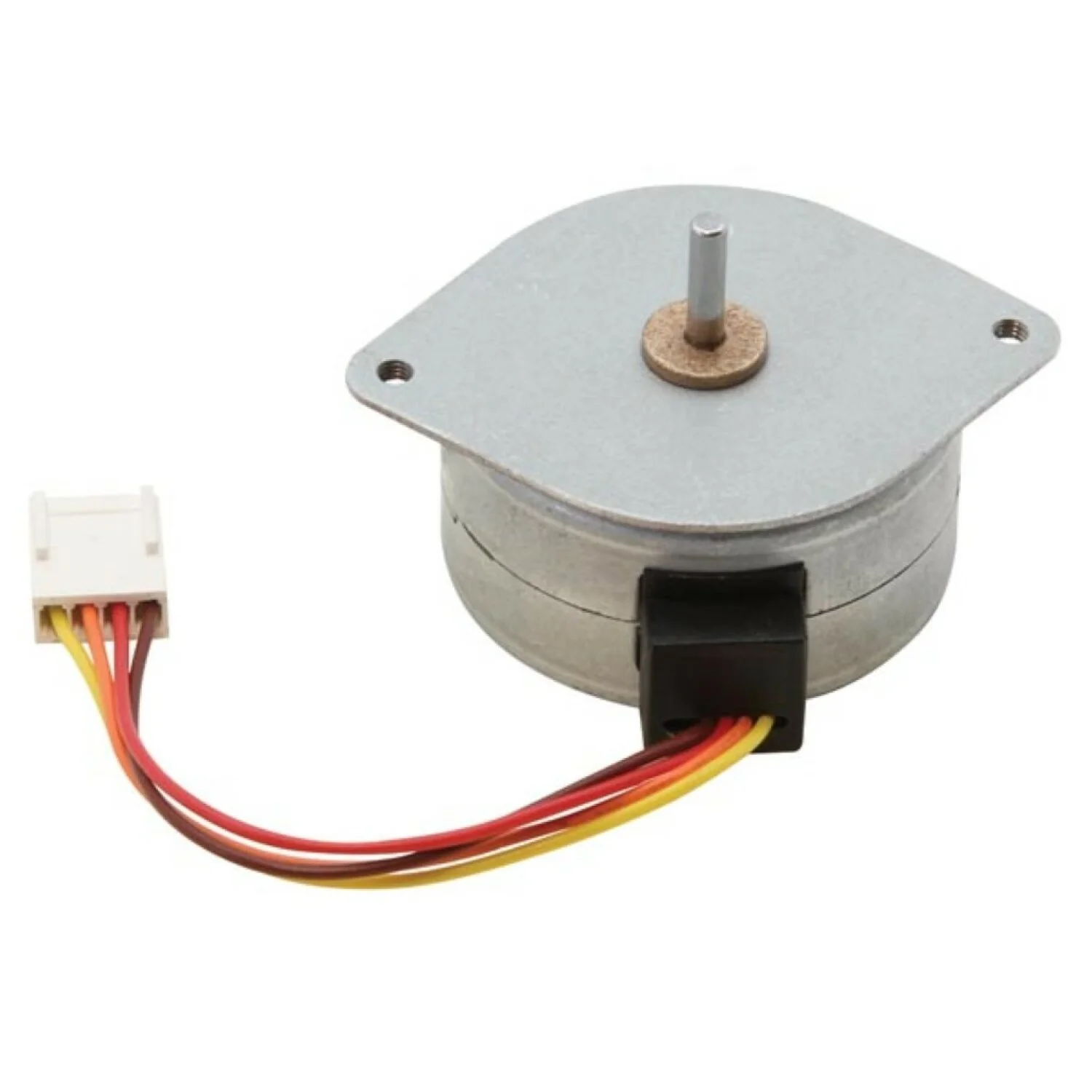

Velleman MOTS3 Stepper Motor 24vdc/600ma (angle 7.5° / 48 Steps)—
$29.99
The Story
General Information
Manufacturer
Velleman
Part Number
MOTS3
Product Type
Stepper Motor
California Residents
Proposition 65 Warning
Specifications
Weight
2.18 kg
4.81 lb
Miscellaneous
Features
Stepper Motor 24vdc/600ma (angle 7.5° / 48 Steps)
Rated voltage: 24 Vdc
Current : 600 mA
Impedance : 40 ohm
Phase: 2 step angle / step: 7.5° / 48
detent torque: 800 gf.cm
pull-in torque: 340 gf.cm
max. starting pulse rate: 1450 pps
max. slewing pulse rate: 3000 pps
temperature range: 45 °C
cable: 50 cm AWG 1007#26
colours: 1: brown 2: red 3: orange 4: yellow
Rated voltage: 24 Vdc
Current : 600 mA
Impedance : 40 ohm
Phase: 2 step angle / step: 7.5° / 48
detent torque: 800 gf.cm
pull-in torque: 340 gf.cm
max. starting pulse rate: 1450 pps
max. slewing pulse rate: 3000 pps
temperature range: 45 °C
cable: 50 cm AWG 1007#26
colours: 1: brown 2: red 3: orange 4: yellow
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
General Information
Manufacturer
Velleman
Part Number
MOTS3
Product Type
Stepper Motor
California Residents
Proposition 65 Warning
Specifications
Weight
2.18 kg
4.81 lb
Miscellaneous
Features
Stepper Motor 24vdc/600ma (angle 7.5° / 48 Steps)
Rated voltage: 24 Vdc
Current : 600 mA
Impedance : 40 ohm
Phase: 2 step angle / step: 7.5° / 48
detent torque: 800 gf.cm
pull-in torque: 340 gf.cm
max. starting pulse rate: 1450 pps
max. slewing pulse rate: 3000 pps
temperature range: 45 °C
cable: 50 cm AWG 1007#26
colours: 1: brown 2: red 3: orange 4: yellow
Rated voltage: 24 Vdc
Current : 600 mA
Impedance : 40 ohm
Phase: 2 step angle / step: 7.5° / 48
detent torque: 800 gf.cm
pull-in torque: 340 gf.cm
max. starting pulse rate: 1450 pps
max. slewing pulse rate: 3000 pps
temperature range: 45 °C
cable: 50 cm AWG 1007#26
colours: 1: brown 2: red 3: orange 4: yellow
